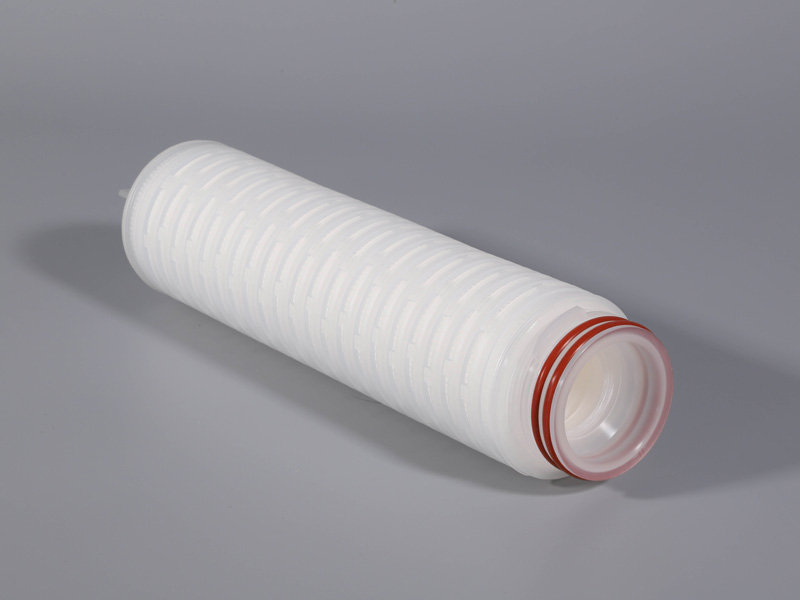

PES Folding Filter Cartridge

Product Introduction：

PES folding filter cartridge (polyether sulfone microporous membrane)

The PES folding filter adopts an asymmetric polyethersulfone microporous membrane with a porosity of over 80%. It has a unique gradient pore structure, high filtration efficiency, and large flow rate. PES membrane is naturally hydrophilic and can be used for aqueous solution filtration without pre wetting. There is no surfactant addition or fiber shedding. The adsorption capacity of proteins and valuable biological agents is extremely low, and the pH range is wide (1-14), making it a core filtration element in the fields of pharmaceuticals, biological products, and electronic ultrapure water.
Application fields:

◎ Pharmaceutical industry: Injection solution (SVP/LVP), water for injection (WFI), eye drops, vaccines, serum, biological products terminal sterilization filtration

◎ Electronics industry: Ultra pure water terminal filtration (POU usage point), semiconductor wet process particle control

◎ Food and beverage: aseptic filling of beer, clarification and filtration of wine, sterilization of high-end beverages

Biotechnology: monoclonal antibodies (mAbs), recombinant protein purification, cell culture medium filtration

Product Features:
◎ Natural hydrophilic, high flow rate

◎ Extremely low protein binding capacity

◎ 0.22 μ m sterilization grade, in compliance with pharmacopoeia

◎ endotoxin<0.25 EU/mL

Technical Indicators:

Asymmetric Polyether Sulfone (PES) Microporous Membrane for Filter Media

Support layer polypropylene (PP) non-woven fabric

Center pole/end cap polypropylene (PP)

Accuracy (μ m) 0.1, 0.2 (0.22), 0.45, 0.65, 1

Filter precision type: Absolute precision (membrane surface filtration)

Filter cartridge length 5 ", 10", 20 ", 30", 40 "

Filter outer diameter Ø 69 mm (standard)

Filter core inner diameter Ø 28 mm (standard)

Effective filtration area ≥ 0.6 m ²/10 ″

Sealing materials include silicone rubber, nitrile rubber (NBR), ethylene propylene diene monomer (EPDM), and fluororubber (FKM)

Maximum working temperature 85 ℃ (0.05 MPa)

Maximum temperature tolerance 140 ℃ (0.28 MPa)

Maximum positive pressure difference 0.42 MPa (25 ℃)

Maximum backpressure difference 0.21 MPa (25 ℃)

Sterilization conditions: 121 ℃ for 30 minutes (SIP online steam sterilization)

PH applicable range 1~14
