Product Introduction:

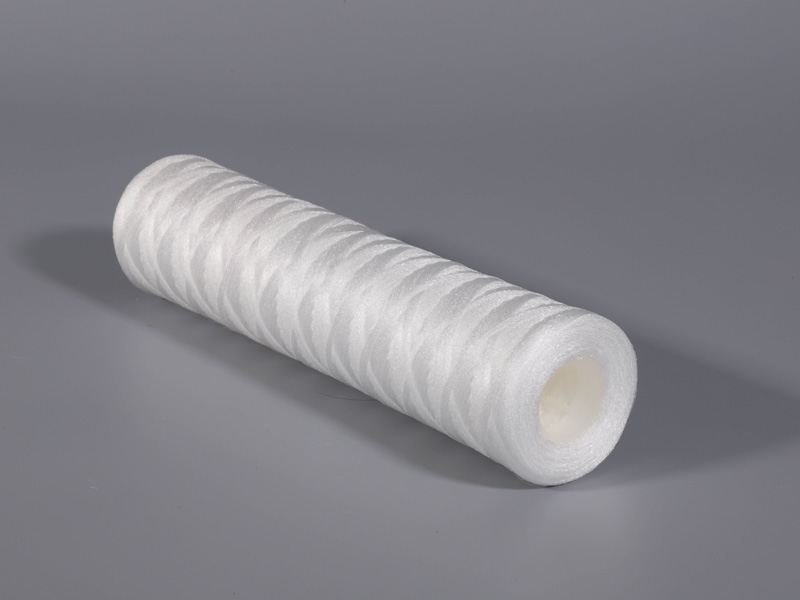

The long fiber thread wound filter element is made of high-quality long fiber yarn precision winding, with a deep gradient filtration structure and a large pollutant holding capacity. The outer layer is loose and intercepts large particles of impurities, while the inner layer is dense and gradually intercepts fine suspended solids, effectively extending the service life of the precision filter element at the back end. Suitable for industrial water treatment pre-treatment, cooling circulating water, and process water coarse filtration scenarios, it is a cost-effective deep pre filtration solution.
Application fields:
Pre filtration and circulating water treatment of pure water system
◎ Food and beverages (alcoholic beverages, soft drinks, dairy products, edible oils)
◎ Chemical plating solution, organic solvents, coatings and paints
◎ Pharmaceutical liquid filtration, biological fermentation broth
◎ Mechanical oil, cutting fluid, heavy oil fuel filtration
◎ Electronic PCB process liquid filtration, bottled water
Product Features:
External sparse and internal dense honeycomb structure, deep gradient filtration
◎ Diamond shaped channel multi-stage interception, high pollutant capacity, low pressure drop
◎ Siphon flow rate in each channel, with outstanding gel filtration effect
◎ High pressure resistant design, 0.4MPa differential pressure filter element does not deform
◎ PP skeleton/stainless steel skeleton suitable for different temperature conditions
Technical Indicators:
Filtering accuracy: 0.5~100 μ m (depending on material and winding density)
PH range: 1-14 (fiberglass+stainless steel)/2-13 (PP type)/5-13 (cotton thread type)
Maximum working temperature: 60 ℃ (PP full plastic)/80 ℃ (PP+stainless steel)/120 ℃ (degreased cotton)/200 ℃ (fiberglass)
Maximum working pressure difference: 2.0 Bar (at 25 ℃)
Pressure resistance: ≤ 0.5MPa, filter element does not deform under 0.4MPa pressure difference
Pollutant holding capacity: ≥ 50g/10 inches (standard PP material)
Filtering principle: Deep filtration: interception+hooking+sedimentation triple action
Filter structure: outer sparse and inner dense honeycomb gradient structure, diamond shaped pore channels
Flow direction: Outside In, impurities are trapped in the deep layers and surfaces of the filter element
