Product Introduction：

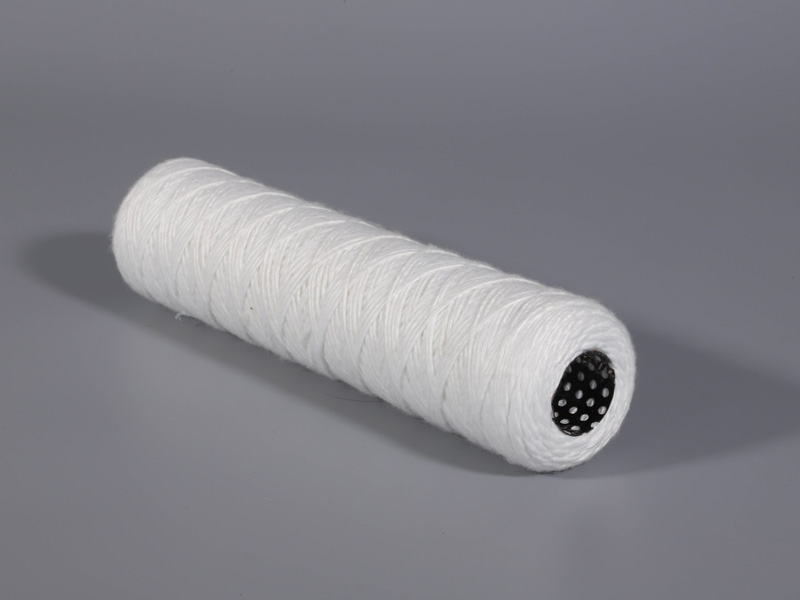

The degreased cotton thread wound filter series uses degreased cotton fiber roving as the filter material, combined with a stainless steel frame. It can withstand temperatures up to 120 ℃ and has excellent compatibility with organic solvents and oil liquids.
Application fields:
Pre filtration and circulating water treatment of pure water system
◎ Food and beverages (alcoholic beverages, soft drinks, dairy products, edible oils)
◎ Chemical plating solution, organic solvents, coatings and paints
◎ Pharmaceutical liquid filtration, biological fermentation broth
◎ Mechanical oil, cutting fluid, heavy oil fuel filtration
◎ Electronic PCB process liquid filtration, bottled water
Product Features:
External sparse and internal dense honeycomb structure, deep gradient filtration
◎ Diamond shaped channel multi-stage interception, high pollutant capacity, low pressure drop
◎ Siphon flow rate in each channel, with outstanding gel filtration effect
◎ High pressure resistant design, 0.4MPa differential pressure filter element does not deform
◎ PP skeleton/stainless steel skeleton suitable for different temperature conditions
Technical Indicators:
Filtering accuracy: 0.5~100 μ m (depending on material and winding density)
PH range: 1-14 (fiberglass+stainless steel)/2-13 (PP type)/5-13 (cotton thread type)
Maximum working temperature: 60 ℃ (PP full plastic)/80 ℃ (PP+stainless steel)/120 ℃ (degreased cotton)/200 ℃ (fiberglass)
Maximum working pressure difference: 2.0 Bar (at 25 ℃)
Pressure resistance: ≤ 0.5MPa, filter element does not deform under 0.4MPa pressure difference
Pollutant holding capacity: ≥ 50g/10 inches (standard PP material)
Filtering principle: Deep filtration: interception+hooking+sedimentation triple action
Filter structure: outer sparse and inner dense honeycomb gradient structure, diamond shaped pore channels
Flow direction: Outside In, impurities are trapped in the deep layers and surfaces of the filter element
